EVA+ API usermanual

Abstract:

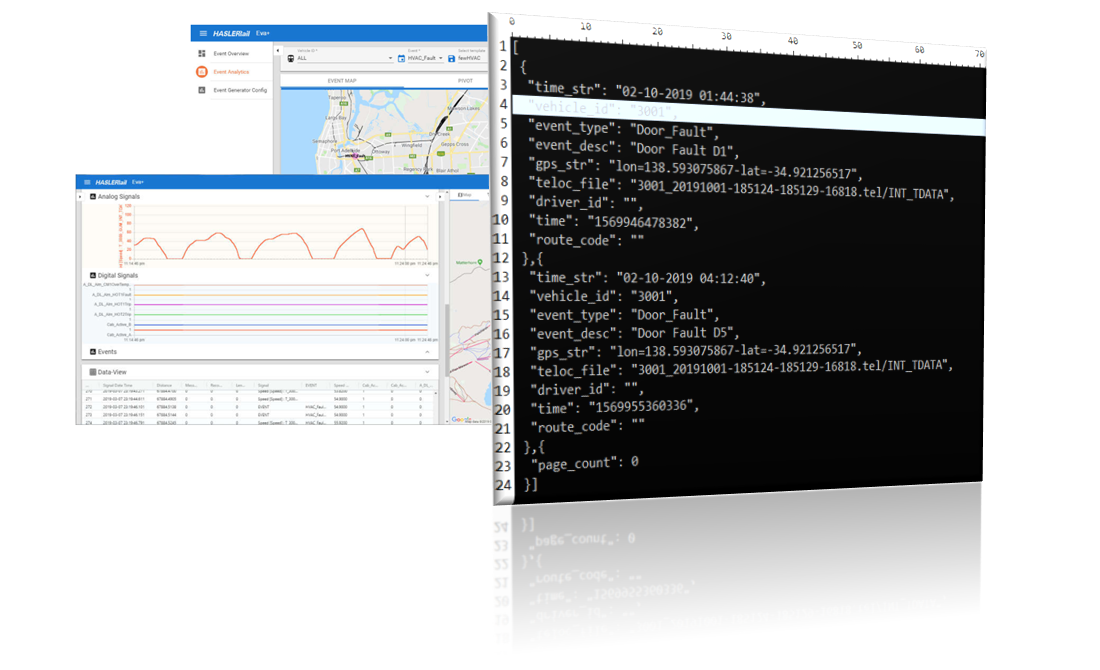

Describes the EVA+ API for technically advanced users who wants to use EVA+ data in 3rd party applications. title image

Introduction

Keep control of all vehicle data while making them available to other stakeholders/parties.

The REST based data API allows to make data available for humans and 3rd party applications. It allows the operator, the owner of the data to give out what he wants and protect what is private.

Based on the available modules, the operator can define datasets which are accessible from outside the application.

Limitation: The API calls are queued, so that only one call is executed at the time. The next call is processed once the previous response has been sent. The default limit of records to be retrieved is 10000 records.

REST API

In the following examples EVA+URL has to be replaced with the customer specific URL e.g.: railwaycompany.evaplus.com

Security

User and Roles

In “user settings” of the EVA+ webinterface, the permission to access the API of a specific module can be assigned to a role.

EVA+ API
EVA+ Fleet API
EVA+ Fleet Location API
EVA+ Teloc Manager API

The API permission has to be set explicitly. It is not automatically given if the permission “ALL Modules All Actions” is set.

A user can only perform one request at the time.

Request Method: POST

https:// EVA+URL /EvaPlusRest/auth/login

Body (Content-Type = application/json )

{ "username": "guest", "password": "guest}

Response:

{
  "name": "guest",
  "email": "guest@haslerrail.com",
  "roles": "andAPI",
  "token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJJc3N",
  "lang": "EN",
  "roleActions": "API;API_FLEET;API_FLEET_LOCATIONS;API_TELOC_MANAGER;",
  "roleVehicles": "ALL;"
}

All API calls from now on will use this string token as Header Value for auhtorization.

HTTPS

https is used for the rest call.

General Data

Vehicle List

Request Method: GET

https://EVA+URL/EvaPlusRest/getVehicleFleet

Header key: Authorization
Header Value: Token

Response:

[
  {
    "fleet": "ClassXXXX",
    "vehicle": [
      "1",
      "2",
      "3",
      "4",
      "5",
      "6",
      "7",
      "8",
      "9",
      "10",
      "11",
      "12",
      "13"
    ]
  },
  {
    "fleet": "ClassXXX",
    "vehicle": [
      "1",
      "2",
      "3",
      "4",
      "5",
      "6",
      "7"
    ]
  },
  {
    "fleet": "NameOfTheFleet",
    "vehicle": [
      "1",
      "2"
    ]
  }
]

Recorder List

Request Method: GET

https:// EVA+URL /EvaPlusRest/getRecorderVehicle

Header key: Authorization
Header Value: Token

Response:

[
  {
    "id": "1",
    "vehicle": [
      "1"
    ]
  },
  {
    "id": "2",
    "vehicle": [
      "2"
    ]
  },
  {
    "id": "3",
    "vehicle": [
      "3"
    ]
  }
]

Signal Name List

Request Method: GET

https:// EVA+URL /EvaPlusRest/getSignalNameList?vehicleId=1

Header key: Authorization
Header Value: Token

Parameter	Optional	Argument	Comment
vehicleId	mandatory	Vehicle ID as stored in the TELOC.

Response:

[
  {
    "signalname": "SPEED",
    "signaltype": "SIGNAL_TYPE_ANALOG",
    "signalmemory": "T_3000_GUM_INT_TDATA"
  },
  {
    "signalname": "trigger",
    "signaltype": "SIGNAL_TYPE_DIGITAL",
    "signalmemory": "T_3000_GUM_INT_TDATA"
  },
  {
    "signalname": "GPS_LOCATION",
    "signaltype": "SIGNAL_TYPE_OTHER",
    "signalmemory": "T_3000_GUM_INT_TDATA"
  }
]

Event Name List

Request Method: GET

https:// EVA+URL /EvaPlusRest/getEventNameList

Header key: Authorization
Header Value: Token

Response:

{
  "events": [
    "AWS_Reaction",
    "Cab_setup",
    "Deadman Buzzer",
    "Fire in car",
    "Fire_in_Car",
    "GEOFENCING_EVENT",
    "Horn",
    "ISO_Pneumatic_Brake",
    "Journey",
    "Journey_stop",
    "Segment",
    "Speed>105mph",
    "Speed>110mph",
    "Standstill",
    "TPWS_AWS_brake",
    "TPWS_emergency_brake",
    "Trip",
    "WSP_event",
    "WheelslideDMS",
    "WheelslideDMSL",
    "WheelslidePTS",
    "WheelslideTS",
    "WheelslipDMS",
    "WheelslipDMSL",
    "WheelslipPTS",
    "WheelslipTS",
    "Wheelslip_DMS",
    "Wheelslip_DMSL",
    "temp01"
  ]
}

Signal Querying

Data can be pulled from EVA+ with a REST Query from:

Parameter	Optional	Argument	Comment
vehicleId	mandatory	Vehicle ID as stored in the TELOC.
recorderId	mandatory	Serial Number of the TELOC® if Multiple Recorders are mounted on the Vehicle
startTime	mandatory	(yyyyMMddHHmm)	Data from this timestamp will be retrieved, including this timestamp,If no date is specified only limit is taken into consideration.
endTime	mandatory	(yyyyMMddHHmm)	Data up to this timestamp will be retrieved, including this timestamp,If no date is specified new data is selected
signal	Optional	Signal Name of the signal to be transferred, List of the signals separated by “;” or “ALL” for all signals	If no signal is selected all signals are selected
page	Optional	page number 0-n	If there is no page specified, service will return the first page.	In result there will be information how many pages are there for specific period of time and signals. Page range is form 0 till “page_count” in result set.

Signal POST Method

Request Method: POST

https:// EVA+URL /EvaPlusRest/getSignals

Header key: Authorization
Header Value: Token

Request Header Data

{
	"vehicleId": "1",
	"recorderId": "1234567",
	"startTime": "201912301234",
	"endTime": "201912301239",
	"signals": ["Speed", "Distance", "B1_0105-BBR_ATPIsol"],
	"page": "0"
}

Signal Response

Last element in array of result set is “page_count” that give information how many page are there for specific date time range and signal.

[
  {
    "conf_issue": "ClassXXXX_conf:01",
    "teloc_file": "teloc_file.tel/INT_TDATA",
    "teloc_memory": "T_3000_GUM_INT_TDATA",
    "time": "2019-10-03 06:47:49:162",
    "distance": "55099.90349",
    "identifier": "DISTANCE",
    "value": "55099.90349",
    "name": "DISTANCE",
    "sourceId": "DISTANCE"
  },
  {
    "conf_issue": "ClassXXXX_conf:01",
    "teloc_file": "teloc_file.tel/INT_TDATA",
    "teloc_memory": "T_3000_GUM_INT_TDATA",
    "time": "2019-10-03 06:47:49:082",
    "distance": "55099.90349",
    "identifier": "DISTANCE",
    "value": "55099.90349",
    "name": "DISTANCE",
    "sourceId": "DISTANCE"
  },
  {
    "page_count": 5
  }
]

EVA+ does not store information regarding the state of transfer. Therefore, EVA+ cannot be queried for the newest data which was not previously transferred.

Event Querying

Parameter	Optional	Argument	Comment
vehicleId	optional	Vehicle ID as stored in the TELOC.
startTime	mandatory	(yyyyMMddHHmm)	Data from this timestamp will be retrieved, including this timestamp. If no date is specified only limit is taken into consideration.
endTime	mandatory	(yyyyMMddHHmm)	Data up to this timestamp will be retrieved, including this timestamp. If no date is specified new data is selected
event	optional	Event Type to be transferred, List of the events separated by “;” or “ALL” for all events. If no event is selected all events are selected
page	optional	page >= 0	If there is no page specify, service will give back first page. In result there will be information how many pages are there for specific period of time and events. Page range is form 0 till “page_count” in result set.

ETCS Signal POST Method

Request Method: POST

https:// EVA+URL /EvaPlusRest/getSignalsEtcs

Header key: Authorization
Header Value: Token

Request Header Data - There are two posibilites for sending request header data, depending on the value of isRaw parameter. First example of header data has “isRaw” : “true”, which means that returned data from collection will have data frame in format of byte array. Second example of header data has “isRaw” : “false”, in this case response will have data with decoded value of data frame.

{
    "vehicleId":"1",
    "recorderId":"1234567",
    "startTime":"202110130900",
    "endTime":"202110131000",
    "page":"0",
    "signals":["TELEGRAM FROM BALISE [6]"],
    "isRaw":"true"
}

{
    "vehicleId":"2",
    "recorderId":"1234567",
    "startTime":"202110130900",
    "endTime":"202110131000",
    "page":"0",
    "signals":["TELEGRAM FROM BALISE [6]"],
    "isRaw":"false"
}

ETCS Signal Response

Last element in array of result set is “page_count” that give information how many page are there for specific date time range and signal.

First example of response is case scenario where we have “isRaw” : “false” in header data.

[
	{
		"conf_issue": "CONF:12",
		"teloc_file": "pathToTelFile/telfile.tel",
		"teloc_memory": "T_3000_ETCS_INT_ETCS",
		"time": "2021-10-13 09:32:36:400",
		"distance": "3455.7222222222217",
		"identifier": "EM_6",
		"value": {
			"signals": [
				{
					"value": {
						"value": 6
					},
					"signals": [
						{
							"signals": [
								{
									"value": {
										"value": 6
									},
									"identifier": "NID_MESSAGE",
									"flagVoid": false,
									"flagRecInternal": false,
									"strValue": "TELGRAM FROM BALISE [6]"
								},
								{
									"value": {
										"value": 143
									},
									"identifier": "L_MESSAGE",
									"flagVoid": false,
									"flagRecInternal": false
								}
							],
							"identifier": "HEADER",
							"flagVoid": false,
							"flagRecInternal": false,
							"strValue": "11 fields"
						}
					],
					"identifier": "EM_6",
					"flagVoid": false,
					"flagRecInternal": false,
					"strValue": "TELEGRAM FROM BALISE [6]"
				}
			],
			"record": {
				"recId": 61,
				"msgId": 6,
				"time": 1634117556400,
				"speed": 39,
				"distance": 3455.7222222222219,
				"odometry": false,
				"rawData": [
					6,
					17,
					-27,
					105,
					-87,
					-126,
					68,
					8,
					55,
					-119,
					75,
					-88,
					16,
					12,
					120,
					21,
					-112,
					-100,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					-4,
					0,
					113,
					-47,
					9,
					90,
					16,
					47,
					-6,
					13,
					-30,
					116,
					-87,
					3,
					-115,
					6,
					0,
					4,
					0,
					-28,
					-60,
					-28,
					32,
					-128,
					-1,
					-4,
					84,
					1,
					-60,
					-125,
					0,
					2,
					0,
					114,
					98,
					114,
					16,
					64,
					127,
					-2,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1,
					-1
				],
				"parsedTime": 0,
				"referenceBlock": false,
				"version": 33
			},
			"time": "Oct 13, 2021, 11:32:36 AM",
			"distance": 3455.7222222222219,
			"timeChangedInSignals": "NONE"
		},
		"vehicle_id": "1",
		"serial_number": "1234567",
		"strvalue": "TELEGRAM FROM BALISE [6]"
	},
	{
		"page_count": 0
	}
]

Second example of response is case scenario where we have “isRaw” : “true” in header data.

[
  {
    "conf_issue": "CONF:12",
    "teloc_file": "pathToTelFile/file2.tel",
    "teloc_memory": "T_3000_ETCS_INT_ETCS",
    "time": "2021-10-13 09:32:36:400",
    "distance": "3455.7222222222217",
    "identifier": "EM_6",
    "value": "6",
    "vehicle_id": "1",
    "serial_number": "1234567",
    "strvalue": "TELEGRAM FROM BALISE [6]",
    "data_frame": {
      "type": 0,
      "data": [
        0,
        1,
        46,
        99,
        111,
        109,
        46,
        104,
        97,
        115,
        108,
        101,
        114,
        114,
        97,
        105,
        108,
        46,
        112,
        97,
        114,
        115,
        "2000+ fields more"
      ]
    }
  },
  {
    "page_count": 0
  }
]

EVA+ does not store information regarding the state of transfer. Therefore, EVA+ cannot be queried for the newest data which was not previously transferred.

Event Querying

Parameter	Optional	Argument	Comment
vehicleId	optional	Vehicle ID as stored in the TELOC.
startTime	mandatory	(yyyyMMddHHmm)	Data from this timestamp will be retrieved, including this timestamp. If no date is specified only limit is taken into consideration.
endTime	mandatory	(yyyyMMddHHmm)	Data up to this timestamp will be retrieved, including this timestamp. If no date is specified new data is selected
isRaw	mandatory	true <-> false	Value true means that returned data from collection will have data frame in format of byte array. Value false means that response will have data with decoded value of data frame
event	optional	Event Type to be transferred, List of the events separated by “;” or “ALL” for all events. If no event is selected all events are selected
page	optional	page >= 0	If there is no page specify, service will give back first page. In result there will be information how many pages are there for specific period of time and events. Page range is form 0 till “page_count” in result set.

Events POST Method

Request Method: POST

https:// EVA+URL /EvaPlusRest/getEvents

Header key: Authorization
Header Value: Token Request Header Data
```
{
    vehicleId : "1",
    startTime: "201910020000",
    endTime: "201910020600",
    events: ["Door_Fault"],
    page: "0"
}
```
Both cases get and post when signal list is empty, api will give all signal for that vehicle, recorder and time.
parameter “events”: [“ALL”] will give all event types in result set.

Event Response:

[
  {
    "teloc_file": "teloc_file.tel/INT_TDATA",
    "vehicle_id": "1",
    "time": "1569946478382",
    "time_str": "02-10-2019 01:44:38",
    "event_type": "Door_Fault",
    "event_desc": "Door Fault D1",
    "driver_id": "",
    "route_code": "",
    "gps_str": "lon=000-lat=-000"
  },
  {
    "teloc_file": "teloc_file.tel/INT_TDATA",
    "vehicle_id": "1",
    "time": "1569955360336",
    "time_str": "02-10-2019 04:12:40",
    "event_type": "Door_Fault",
    "event_desc": "Door Fault D5",
    "driver_id": "",
    "route_code": "",
    "gps_str": "lon=000-lat=-000"
  },
  {
    "page_count": 0
  }
]

Fleet Management

Fleet management overview

To be able to access this api user’s role must have “EVA+ Fleet API” action selected.

Request Method: GET

https:// EVA+URL /EvaPlusRest/fleet/overview

Header key: Authorization
Header Value: Token

Response:

[
    {
        "GPS_SPEED": "0.5659999999999999",
        "LAT": "-000",
        "LON": "000",
        "DISTANCE": 161429.82987,
        "System_Speed": "0",
        "GPS_DIR": "110.70",
        "vehicle_id": "1",
        "timestamp": 1589963845164,
        "POI": "Temp001"
    },
    {
        "LAT": "-000",
        "LON": "000",
        "DISTANCE": 192724.9451,
        "GPS_SPEED": "0.4630",
        "GPS_DIR": "93.0",
        "System_Speed": "0",
        "vehicle_id": "1",
        "timestamp": 1589963837660,
        "POI": "Temp001"
    }
]

Fleet location

To be able to access this, api user’s role must have “EVA+ Fleet Location API” action selected.

Request Method: GET

https:// EVA+URL /EvaPlusRest/fleet/getLocations

Header key: Authorization
Header Value: Token

Response:

[{
	"vehicle_id": "1",
	"latitude": 000,
	"longitude": -000,
	"speed": 21.391,
	"location_time": 1586340743534,
	"delay": 3015755,
	"rotation": 0.0,
	"serial_number": "1234567",
	"vehicle_state": "ok",
	"event_timestamp": -1
}, {
	"vehicle_id": "2",
	"latitude": 000,
	"longitude": -000,
	"speed": 1.788,
	"location_time": 1586340741680,
	"delay": 3015757,
	"rotation": 0.0,
	"serial_number": "1234567",
	"vehicle_state": "ok",
	"event_timestamp": -1
}, {
	"vehicle_id": "3",
	"latitude": 000,
	"longitude": -000,
	"speed": 2.844,
	"location_time": 1582102721330,
	"delay": 7253778,
	"rotation": 0.0,
	"serial_number": "1234567",
	"vehicle_state": "ok",
	"event_timestamp": -1
}]

Teloc Manager

Teloc Manager Overview

To be able to access this api user’s role must have “EVA+ Teloc Manager API” action selected.

Request Method: GET

https:// EVA+URL /EvaPlusRest/teloc/getRecorderList

Header key: Authorization
Header Value: Token

Response:

[{
	"vehicle_type": "CLASS_XXX",
	"serial_number": "1234567",
	"vehicle_id": "1",
	"configuration_name": "CONFIG - XXX",
	"issue_number": "12",
	"article_number": "XXX",
	"application": "XXX",
	"last_time_seen": "2020-04-08",
	"status": "OK",
	"error_code": ""
}, {
	"vehicle_type": "CLASS_XXX",
	"serial_number": "1234567",
	"vehicle_id": "2",
	"configuration_name": "CONFIG - XXX",
	"issue_number": "12",
	"article_number": "XXX",
	"application": "XXX",
	"last_time_seen": "2020-04-08",
	"status": "Warning",
	"error_code": "6"
}, {
	"vehicle_type": "CLASS_XXX",
	"serial_number": "1234567",
	"vehicle_id": "3",
	"configuration_name": "CONFIG - XXX",
	"issue_number": "13",
	"article_number": "XXX",
	"application": "XXX",
	"last_time_seen": "2020-02-19",
	"status": "Error",
	"error_code": "LTS"
}]

Teloc Recording Counts

To be able to access this api user’s role must have “EVA+ Teloc Manager API” action selected.

Parameter	Optional	Argument	Comment
vehicleId	optional	Vehicle ID as stored in the TELOC.
startTime	mandatory	Data from this timestamp will be retrieved, including this timestamp (yyyyMMddHHmm)	If no date is specified only limit is taken into consideration.
endTime	mandatory	Data up to this timestamp will be retrieved, including this timestamp (yyyyMMddHHmm)	If no date is specified new data is selected
page	optional	If there is no page specify, service will give back first page. In result there will be information how many pages are there for specific period of time and events	Page range is form 0 till “page_count” in result set
signal	optional	Signal to be counted	If no signal is specified the count is returned for all signals.

Request Method: GET

https:// EVA+URL /EvaPlusRest/teloc/getRecordingCounts?vehicleId=1

https:// EVA+URL /EvaPlusRest/teloc/getRecordingCounts?vehicleId=1&startTime=20211113&endTime=20211114&signal=System_SPEED

Header key: Authorization
Header Value: Token

Response:

[{
	"signal": "Unit_Position_Latitude_deg",
	"date": "2020-02-19",
	"recording_count": 14206
}, {
	"signal": "Traction_Safe_Relay_2",
	"date": "2020-02-19",
	"recording_count": 45
}, {
	"signal": "Unit_Speed_of_TCMS_kmh",
	"date": "2020-02-19",
	"recording_count": 20255
}, {
	"signal": "Speed_1_SABO2",
	"date": "2020-02-19",
	"recording_count": 10103
}, {
	"page_count": 0
}]

Tutorials

postman

postman example

google docs

google docs repository

R

R repository

Python

Python repository

EVA+ API usermanual

Abstract:

Introduction

REST API

Security

User and Roles

Login

HTTPS

General Data

Vehicle List

Recorder List

Signal Name List

Event Name List

Signal Querying

Signal POST Method

Signal Response

Event Querying

ETCS Signal POST Method

ETCS Signal Response

Event Querying

Events POST Method

Fleet Management

Fleet management overview

Fleet location

Teloc Manager

Teloc Manager Overview

Teloc Recording Counts

Tutorials

postman

google docs

R

Python
